Description

With increased power, also comes higher levels of heat generated by the engine system. This is why an upgraded intercooler system is especially important in a turbo application. The new CSF 992 Turbo/S Intercooler System is a “must have” bolt-on modification, considering placement of the intercooler system on top of the engine.

Since the inception of the first water-cooled Porsche 911 Turbo with the 996 variant in 2001, the Turbo has been regarded as “the everyday supercar.” With each subsequent model, from 997, then 991, and now with the new 992, the boundaries of usable performance have been pushed on the street, racetrack, and drag strip. The Porsche Turbo is one of the most advanced tuning platforms around the world, with modifications ranging from simple bolt-ons and tunes, to built engines, upgraded turbos, and standalone ECU management systems on vehicles pushing well over 1,000WHP.

How The New Porsche 992 Intercooler System Works

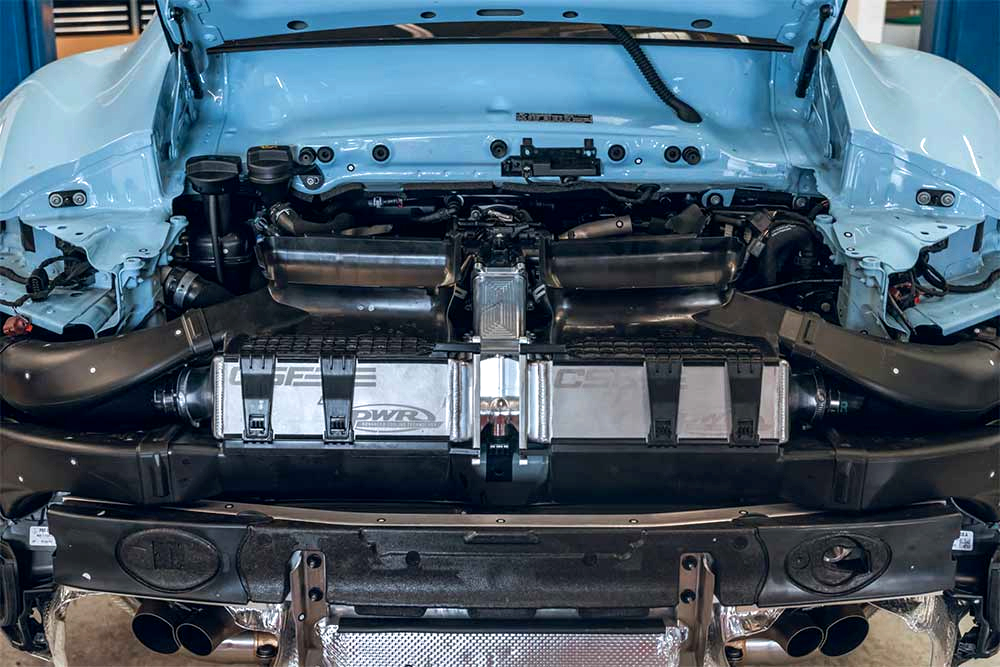

Unconventional to the typical individual side-mounted intercoolers behind the ducts of the front doors found in previous water-cooled Turbo models, the new 992 generation has moved the intercooler system to the top of the engine compartment with fresh ambient air now being transferred into the intercooler system through redesigned intercooler ducts sitting beneath the rear decklid.

Cold, fresh air is scooped in by the intercooler ducts, positioned on each side of the car’s rear quarter panels. The air then travels into the inlet tanks on each side of the intercooler system module. The heat transfer process takes place as the charge-air moves through the intercooler core and the ambient air passes through the core from the top intercooler ducts, and exits below the vehicle. The intercooled charge-air from both cores is then merged in the single center section outlet tank before entering the y-pipe connected to the engine’s throttle body.

Formula-1 Grade Core Technology

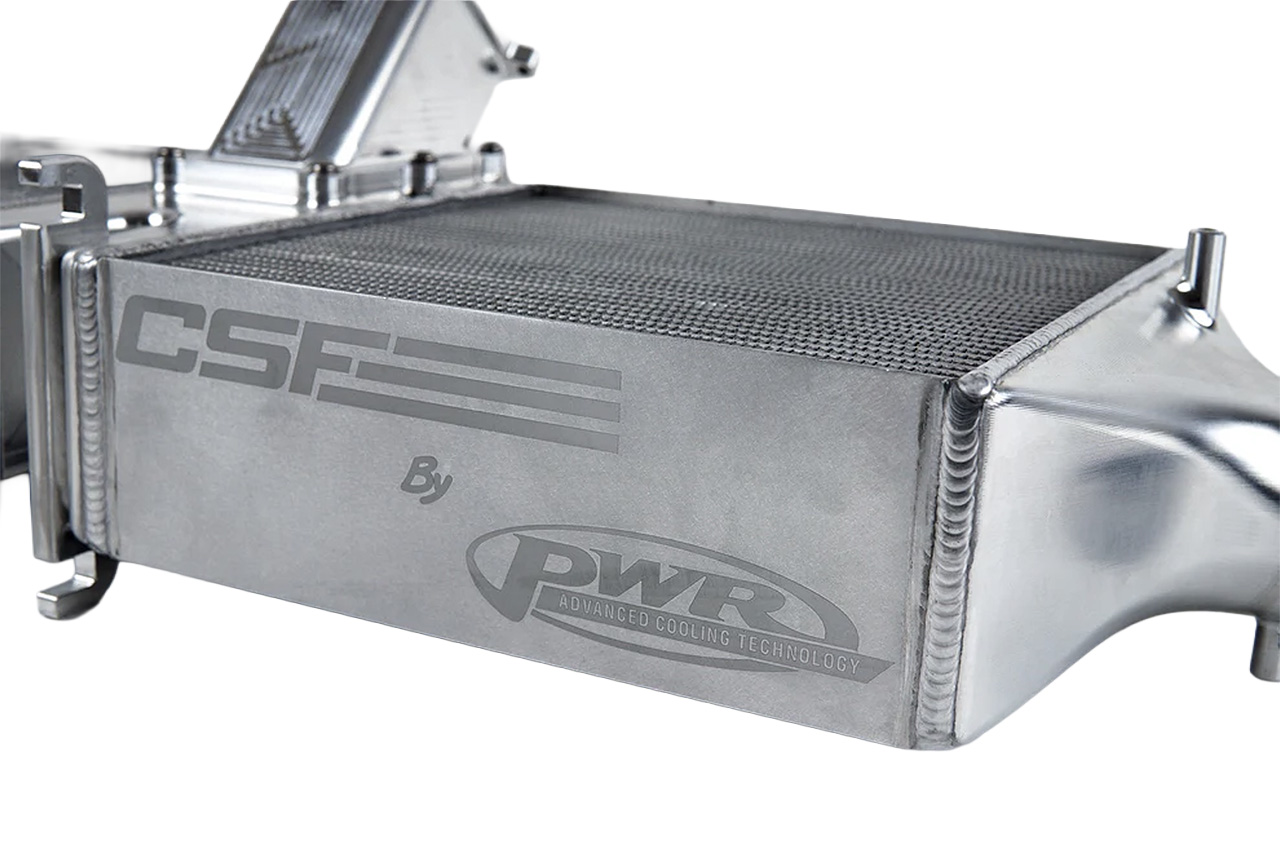

The most important feature of the CSF by PWR 992 Turbo/S Intercooler System is the Formula-1 grade intercooler core. CSF’s strategic relationship with PWR has allowed the inclusion of this core, which is unlike any other available in the performance aftermarket.

• 2-Row Core Featuring Rolled Tubes w/ Inner Fins
• 33 Tubes vs. OEM 17
• 3mm Rolled Tube vs. OEM 7mm
• 4.85mm Fin Height vs. OEM 8mm

CNC Machined Billet Construction

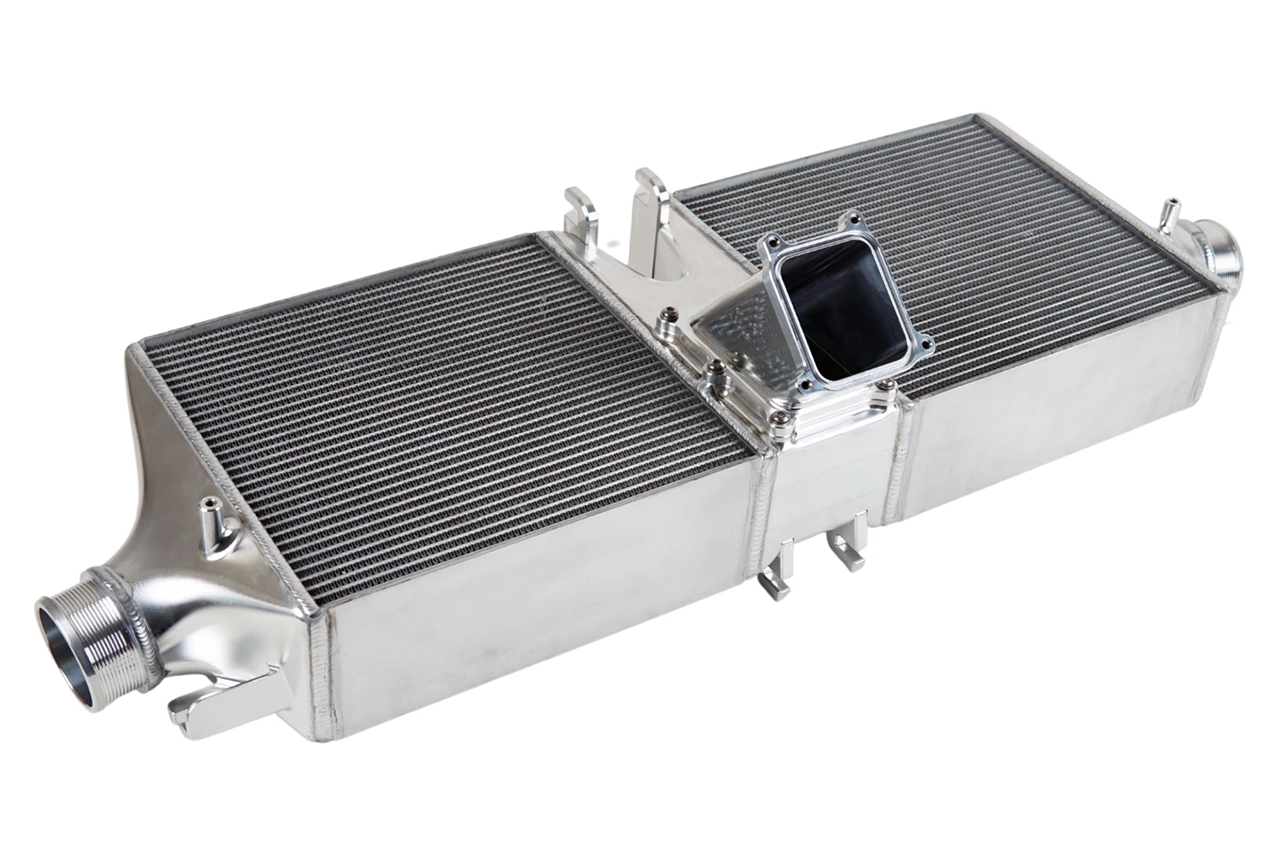

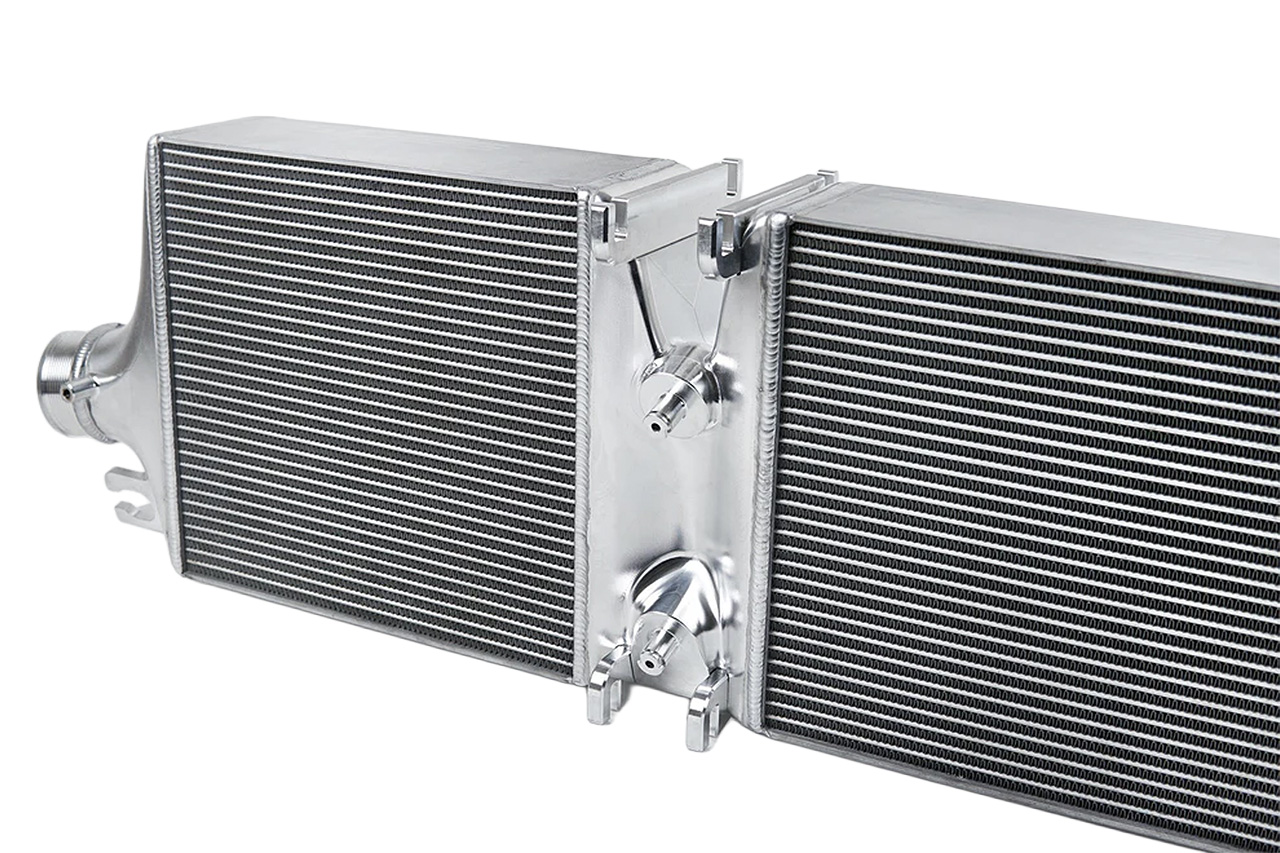

The most apparent difference of the high-performance intercooler system from CSF is the beautiful 100% TIG-welded all aluminum construction, compared to the OEM crimped-on plastic tank design. This feature is especially important in high-boost applications, where the plastic tanks can crack under the stress of higher pressure, or on the racetrack due to higher vibrations.

Industry Leading Dyno Testing by M-Engineering

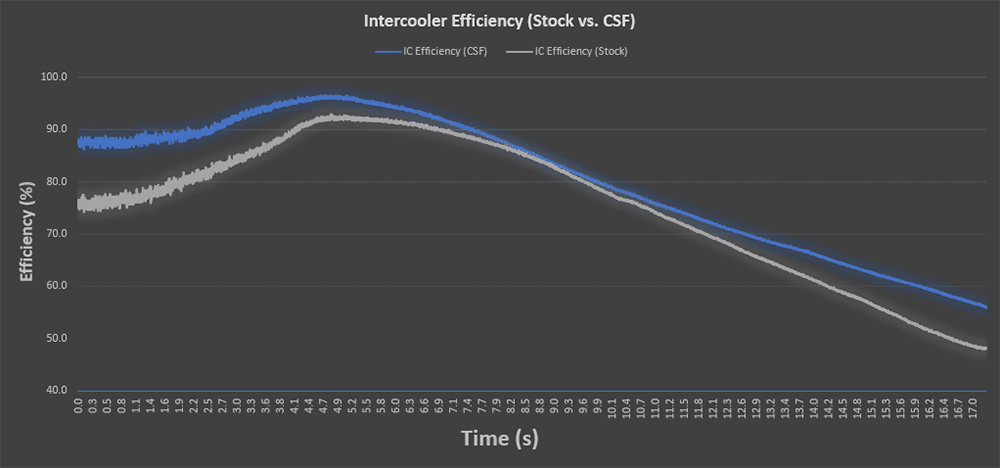

Working with both Jon and Mitch, owners and lead tuners of M-Engineering, to compare the OEM intercoolers vs. CSF’s High-Performance Intercooler System on World Motorsports‘ state-of-the-art wind tunnel dyno. Below are charts of the data from two pulls, one with the stock intercooler system, and one with the CSF High-Performance Intercooler System. These tests started in 4th gear at 2500RPM, went through a shift into 5th, and then to redline.

992 Turbo S, tuned by M-Engineering – Mods are catless downpipes, tuned on E30 fuel. After installing the CSF intercoolers + retune, increase of ~16 WHP and ~60 WTQ.

FEATURES:

• • Eliminates Heat Soak and Lowers Air Intake Temperatures (IATs) for Maximum Performance in Race Conditions – Especially Critical Due to Intercooler Placement in Engine Compartment
  • Formula-1 Performance Grade Core by PWR (2-Row Core Featuring Rolled Tubes w/ Inner Fins)
    • 33 Tubes vs. OEM 17
    • 3mm Rolled Tube vs. OEM 7mm
    • 4.85mm Fin Height vs. OEM 8mm

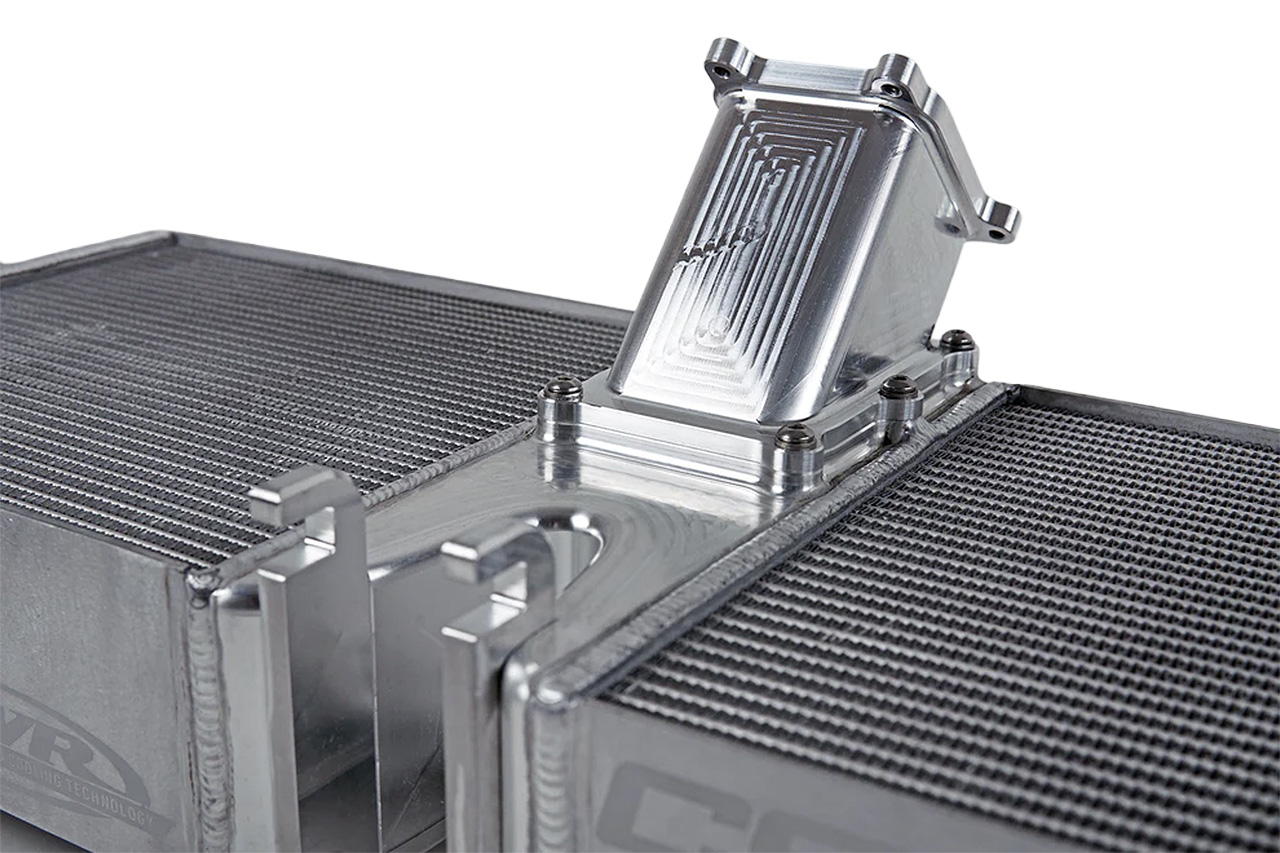

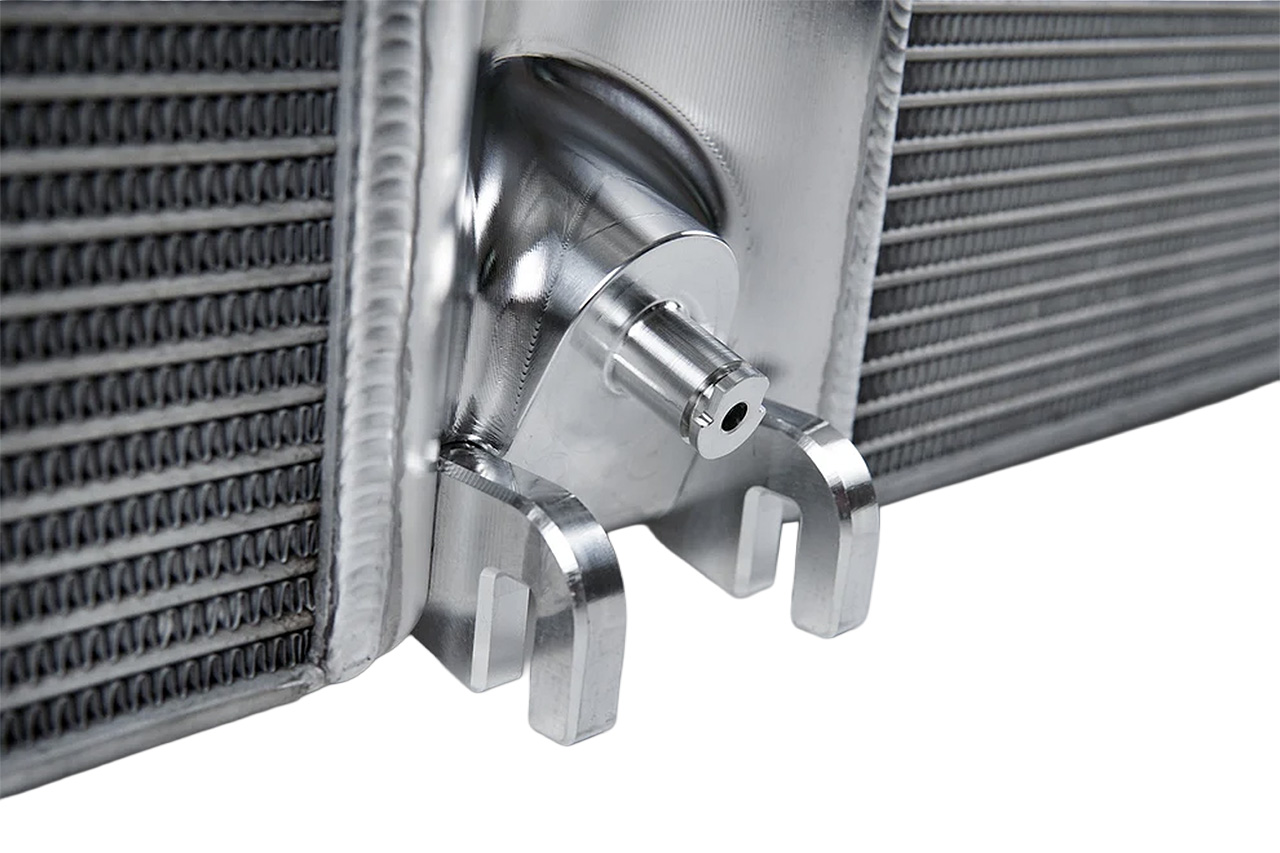

  • CNC Machined Billet End Tanks With Integrated Y-Pipe Connection to Throttle Body
  • 100% TIG Welded vs. OEM Style Gasket and Crimped Plastic End Tanks for Maximum Durability in High Boost Applications

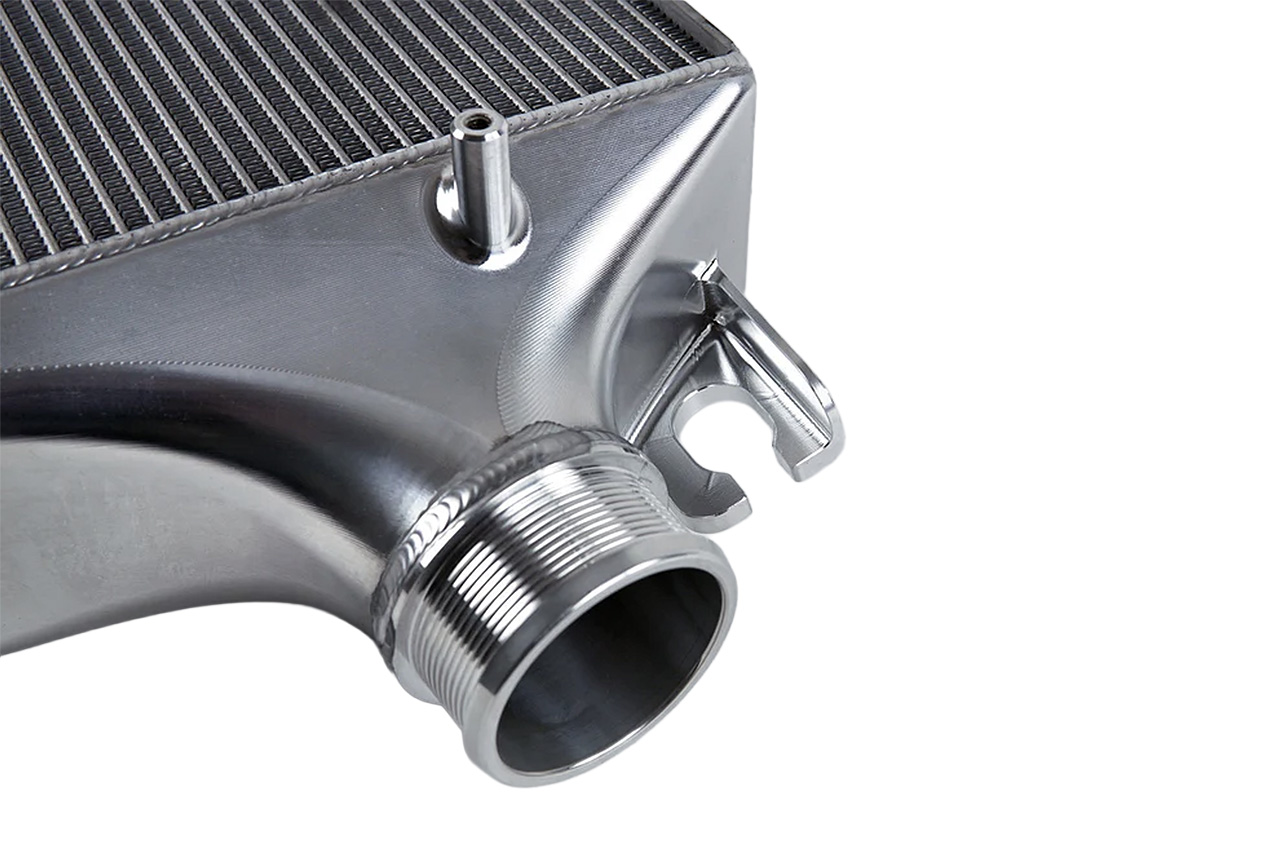

  • OEM Style CNC Machined Inlet/Outlet Connections for Precise Fitment with All OEM Components
  • Highly Engineered, Lightweight Design – Weighing Only 20 lbs. Total (9.07 kg)
  • True Plug-and-Play “Drop-in Fit” Installation
  • R&D and Performance Testing by Industry-Leading Porsche Tuning Companies – M-Engineering, World Motorsports, GMG Racing, and Gosha Turbo Tech
  • Made in the USA at PWR North America

ABOUT CSF:  CSF manufactures advanced cooling systems to keep the most sophisticated and demanding engines cool under the most extreme temperatures and driving conditions. CSF has been manufacturing cooling systems for automotive and industrial applications for over 45 years with over 35 million units sold world wide using military grade aluminum of CAD/CAM designs.
