Description
DEVELOPMENT GOALS
- Build a non-valved system based around a single flow path with large diameter tubing to yield maximum power and sound gains.
- Heighten aggressiveness while maintaining an overall sound level potential / quality that can still be reasonably driven on the street through our signature drone fighting capabilities.
- Maintain a smooth tone with refined character befitting of a Porsche while still offering maximum flow.
RESEARCH & DEVELOPMENT

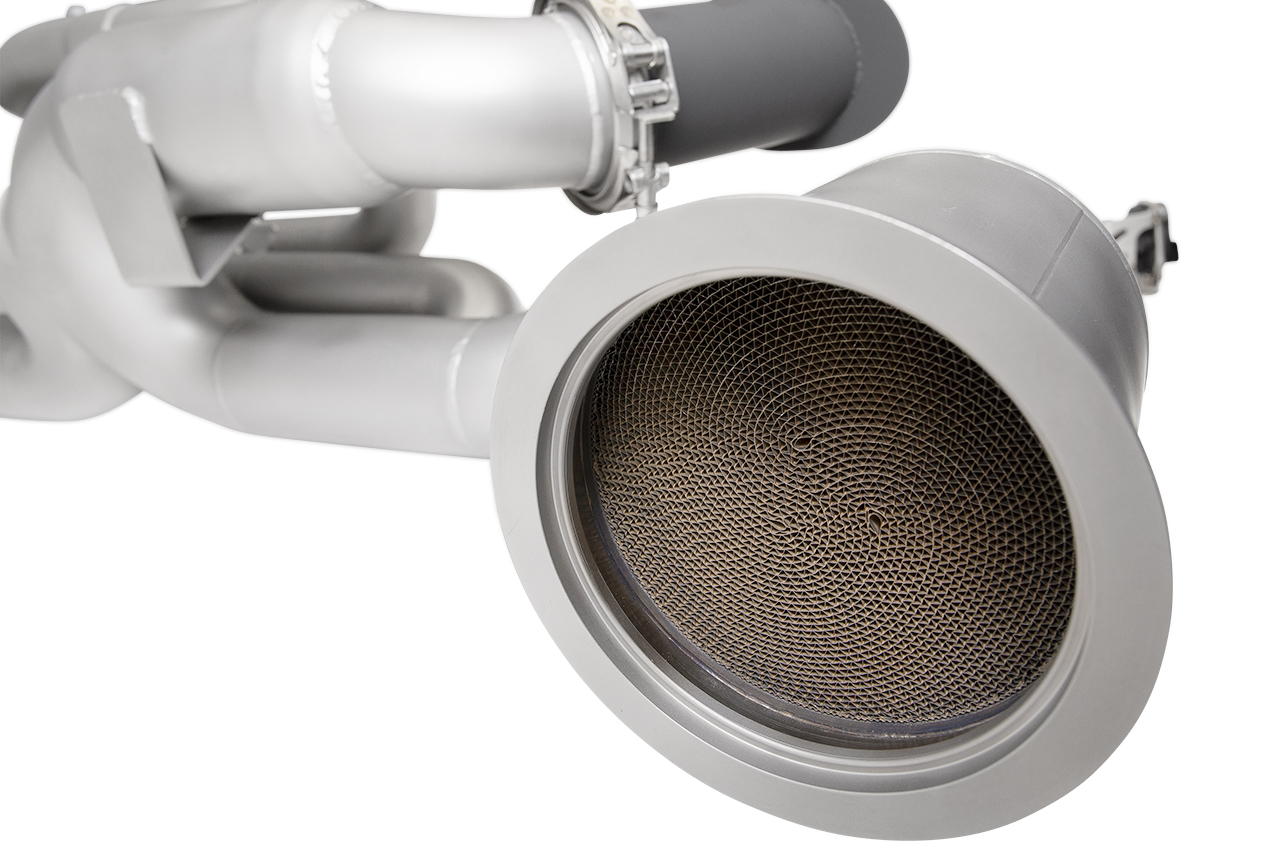

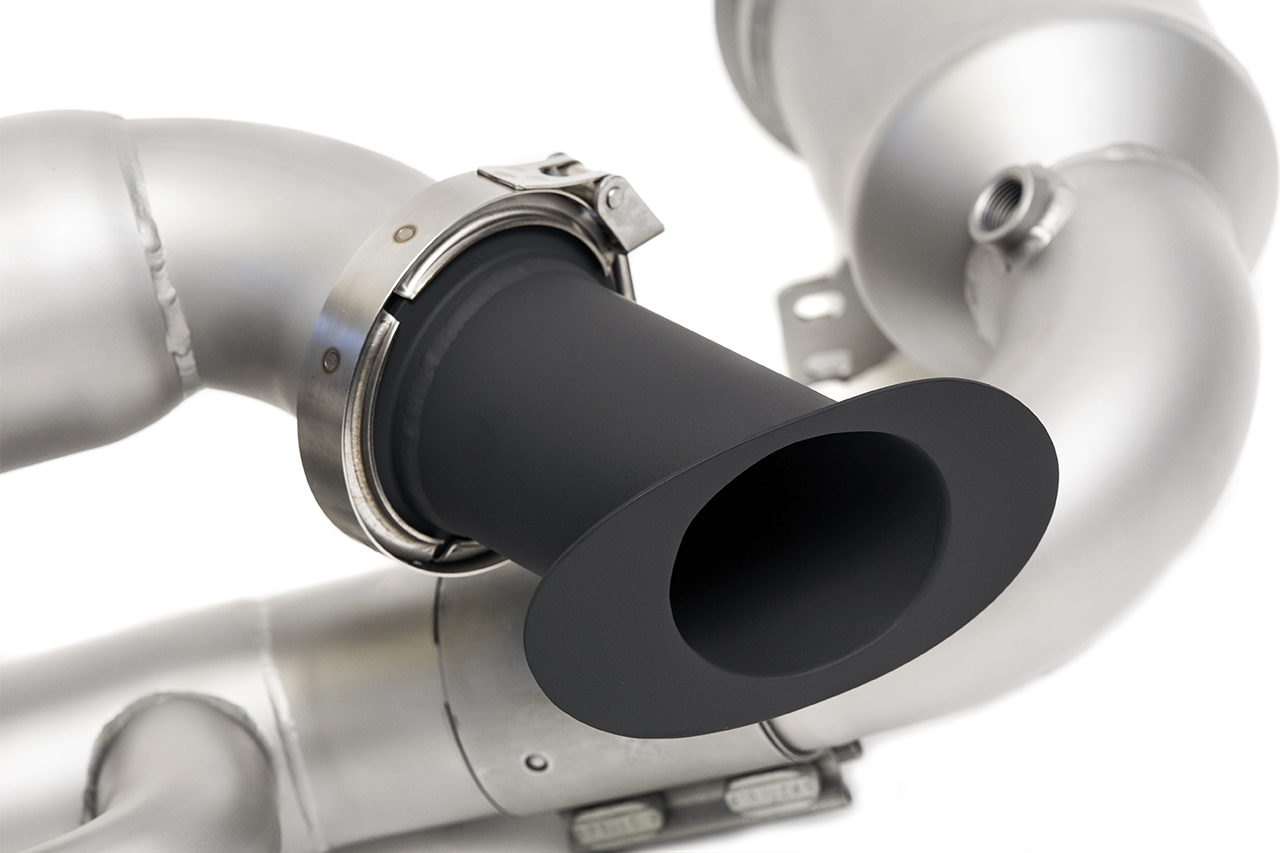

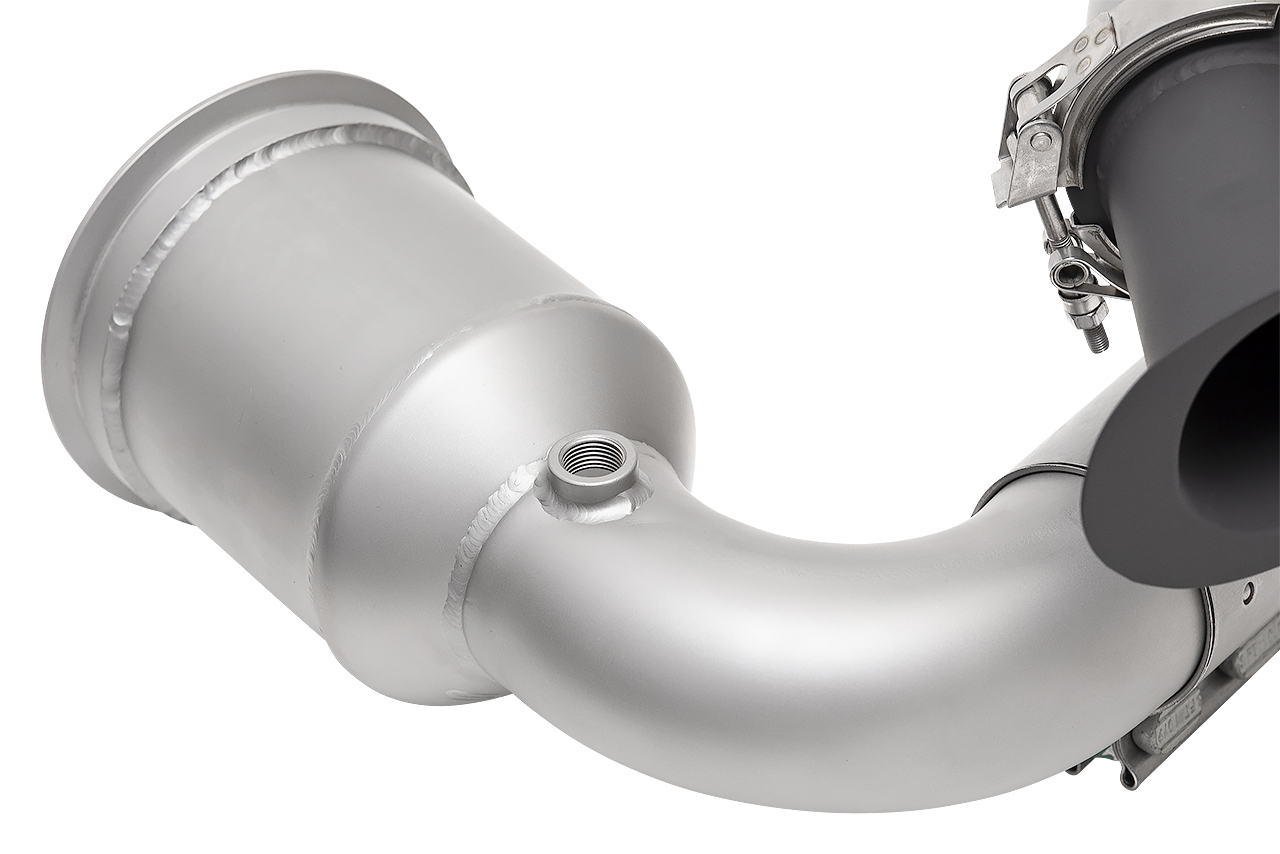

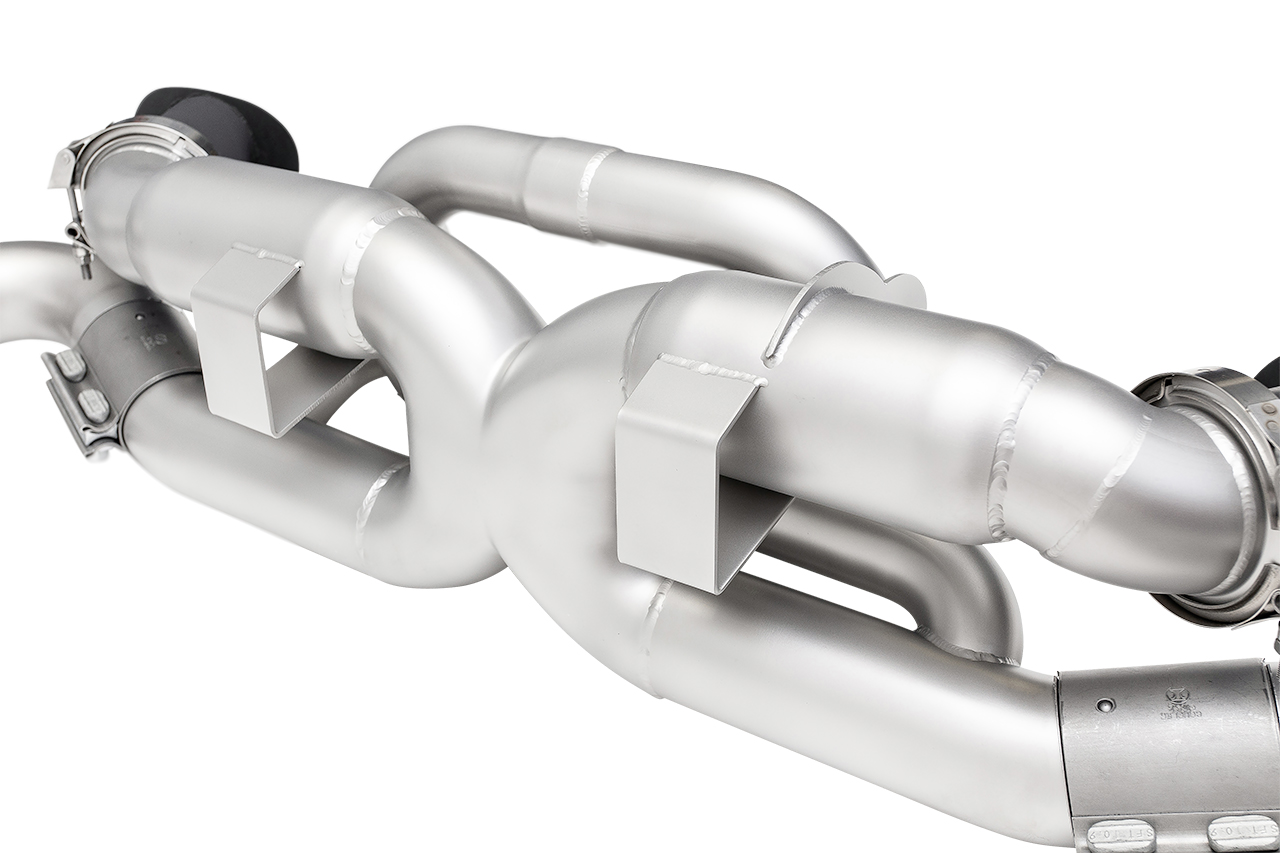

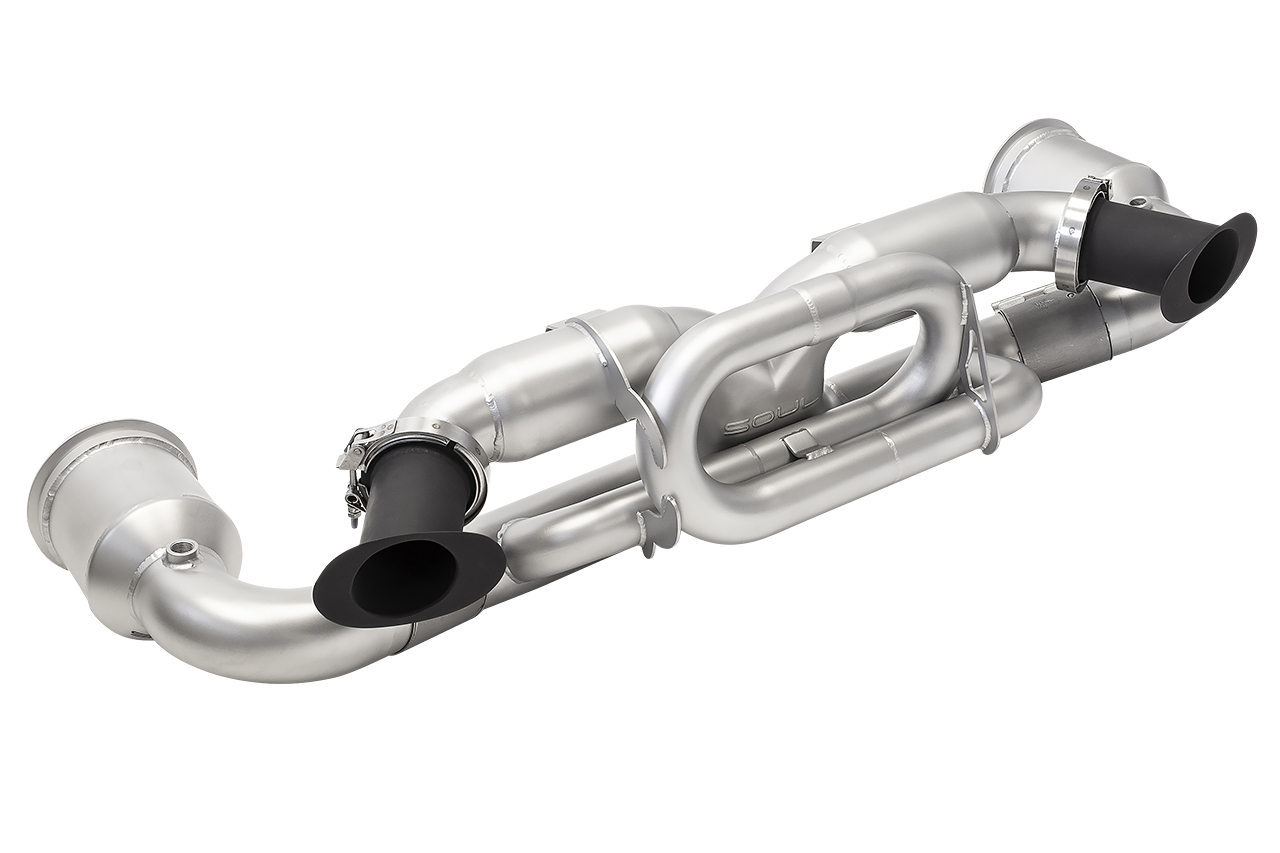

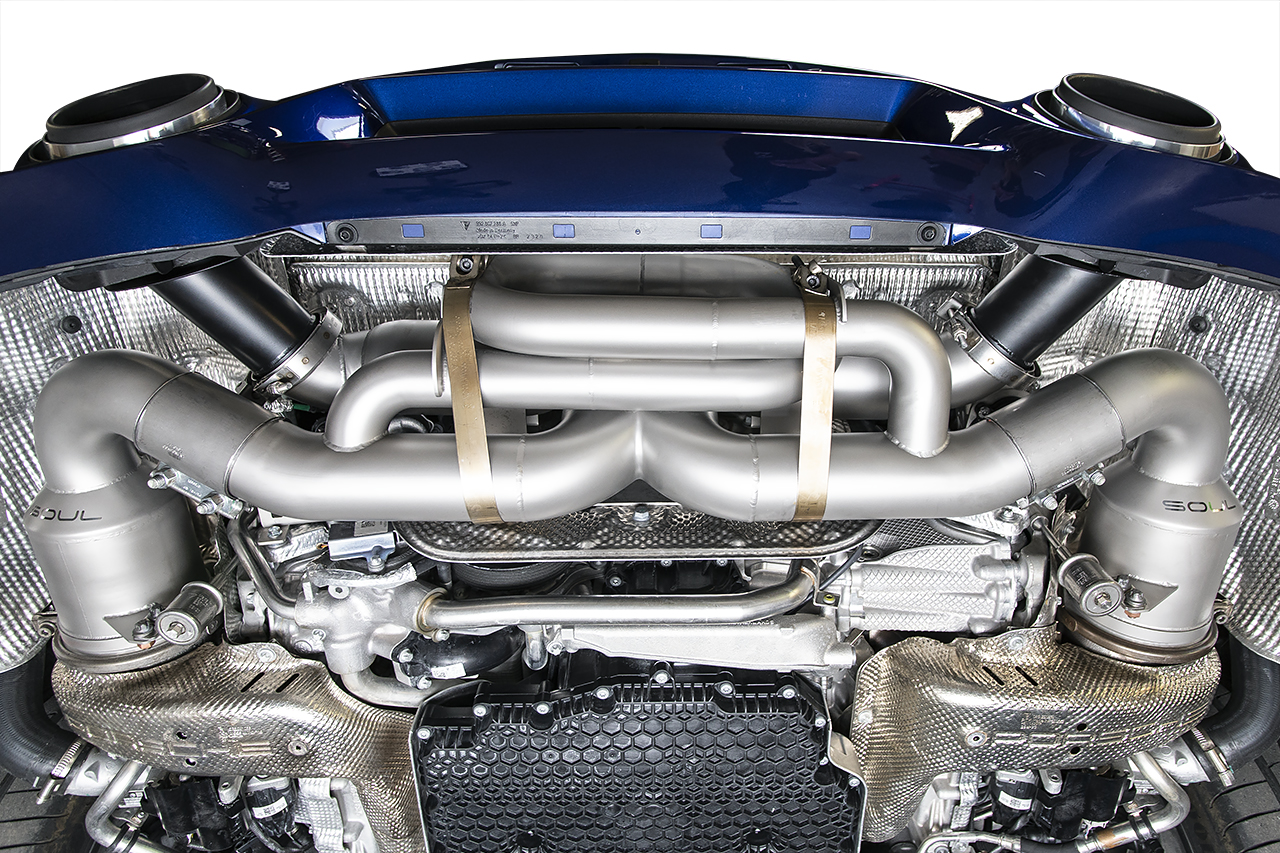

The first order of business was increasing exhaust flow by removing the factory exhaust design from the equation as the tubing diameter is limited to 2.75”. Bespoke catalytic converter sections allow us to go up to full 3” diameter in both catted and catless configurations. The cat pipes then go into a 3” X-Pipe assembly. While some X-Pipe designs use 3” bends, they are cut and welded together and thus reduce the diameter of the pipe to make the X. Some are even cast like ours but don’t maintain that full diameter while blending the exhaust flow. Our X-Pipe is unique in that it is cast to maintain strength and reduce the amount of welds in the system, and we take advantage of that casting to elongate the X to maintain the tubing diameter and maximize flow characteristics. Exhaust flow leaving the X-Pipe assembly then exits out through 3” diameter piping all the way to the tip exits.

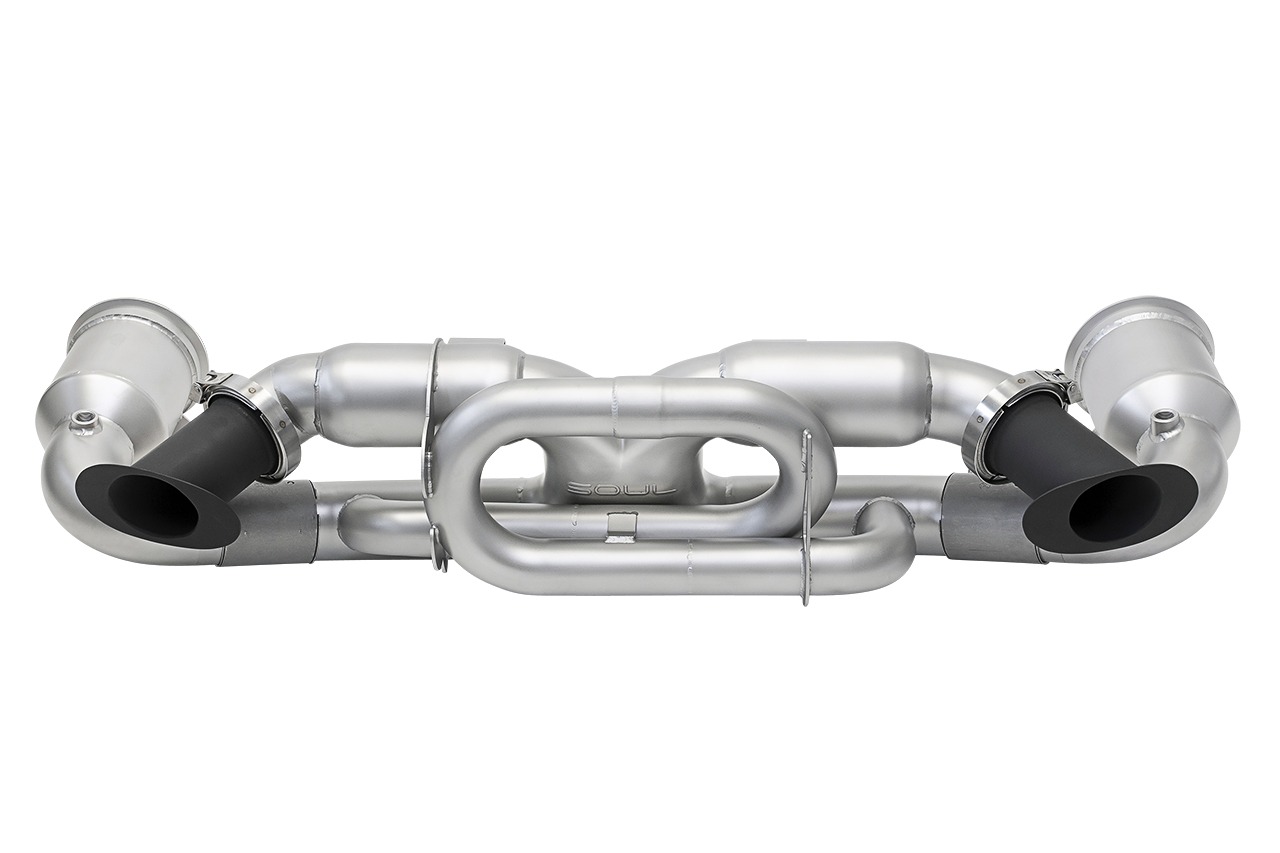

Lengthening the flow path and blending the exhaust flow in the X-Pipe creates a smoother, higher pitch than shorter separated banks. To further refine the tone of the exhaust note, we first implemented four resonators similar to our 996/997/991 Turbo X-Pipe systems. However, the 992 has notably less cabin intrusion than the previous generations -to the driver that wants an aggressive experience it just was not quite there. We reduced the resonators to two, which still refined the exhaust note but allowed more overall sound volume for the driver to enjoy. The 992 platform does have a drone range of approximately 2,000-2,400rpm and the less restriction you have the more pronounced this becomes. We experimented with different lengths and locations of Helmholtz anti-drone tubes to reduce drone. While not eliminated, we’ve reduced it to what we would consider a reasonable level for most drivers looking to maximize the potential of the 992 platform with an aggressive exhaust system. Once we determined the most effective length of the drone tubes separately from each other, we then looped them together into a more symmetrical and aesthetically appealing design while capping them internally to remain functional. The additional room we achieved with our non-valved design also allowed us the opportunity to minutely position the tip outlet pipes to have a Jet-Hot ceramic coated backing plate to “fill” the bumper outlet holes and hide the open area behind it.

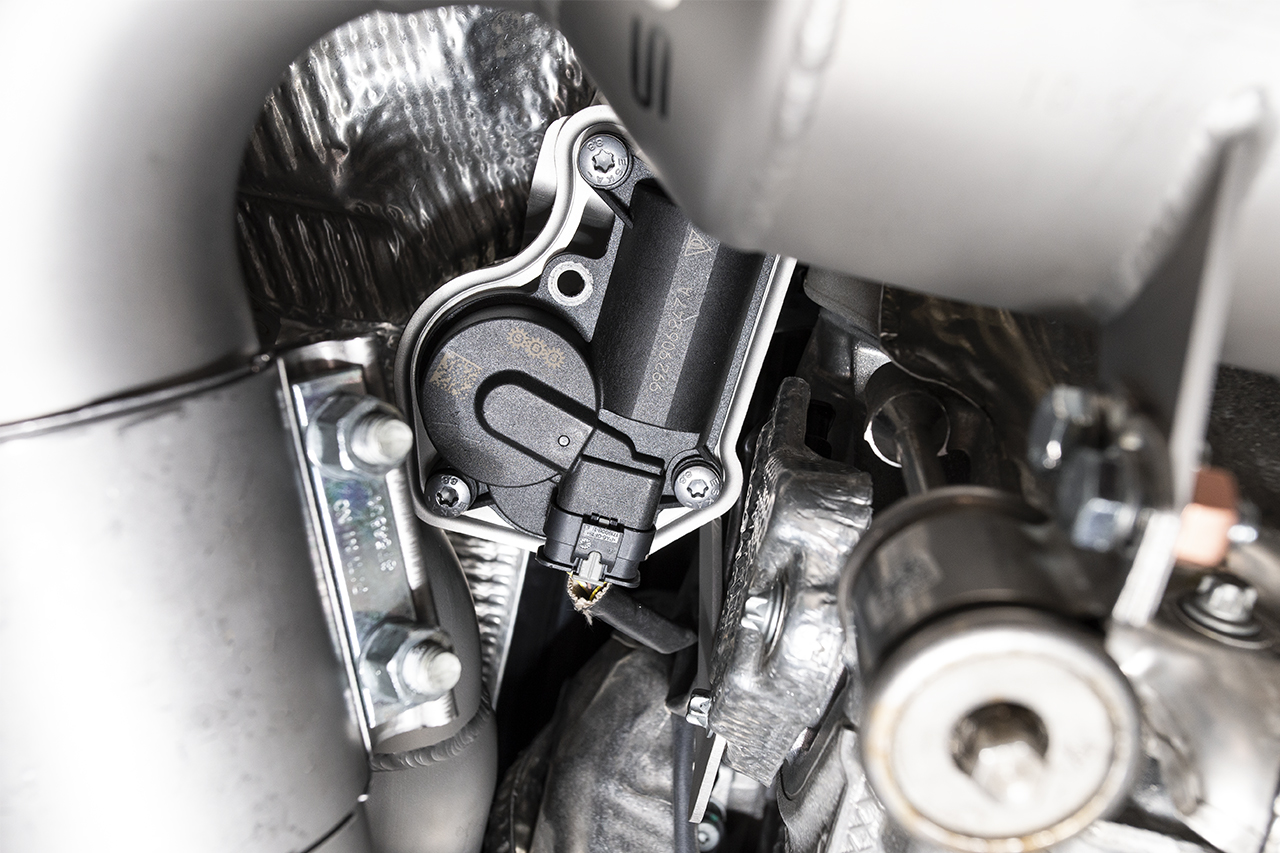

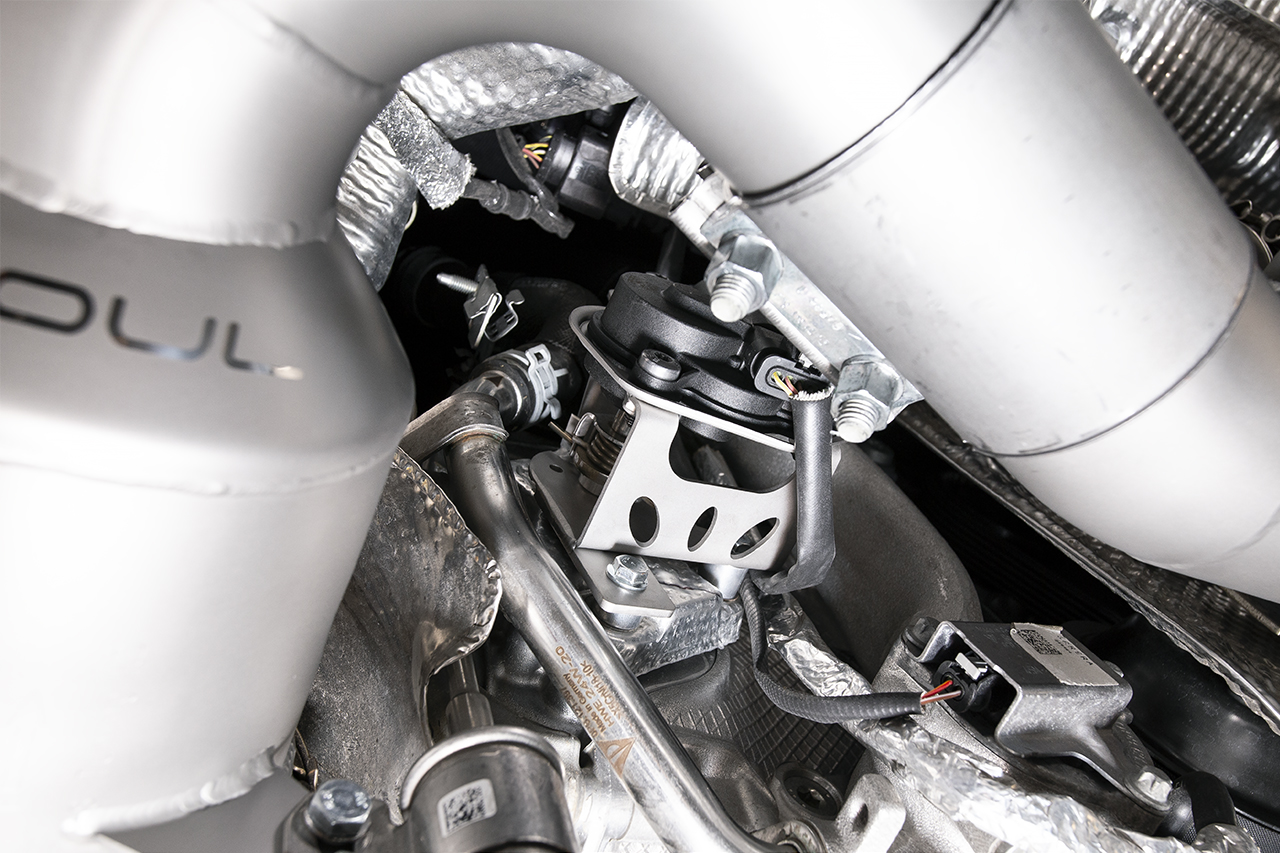

Eliminating the valves was a unique challenge. You cannot simply unplug the electronically actuated valves. If you do – expect limp mode. You cannot take the electronic valve actuators off the mechanical valve bodies and leave them plugged in. If you do – limp mode. For the time being – the factory valves need to be mounted to a bespoke bracket that creates a start/stop point for the electronic valve actuators to mimic factory valve functionality. Our system comes with these bespoke brackets to ensure there is no CEL or limp mode.
DRIVING IMPRESSIONS
Revel in a bolder, fuller exhaust note with a smoother, higher pitched tone. You’ll notice more mechanical feedback and a ripping growl as you climb in RPMs and be treated to increased burbles during deceleration in Sport mode. The turbos make themselves known, especially with the catless Competition version which is particularly sinister with added whistle and induction sound. Both systems deliver an enjoyable, refined and distinctly Porsche exhaust note without rasp and with reduced drone in spite of their free flowing nature. You’ll find yourself staying in gear throughout the rev range to hear the car sing. That said, these systems are aggressive and if you desire a drone free experience we recommend our Sport Catalytic Converters.

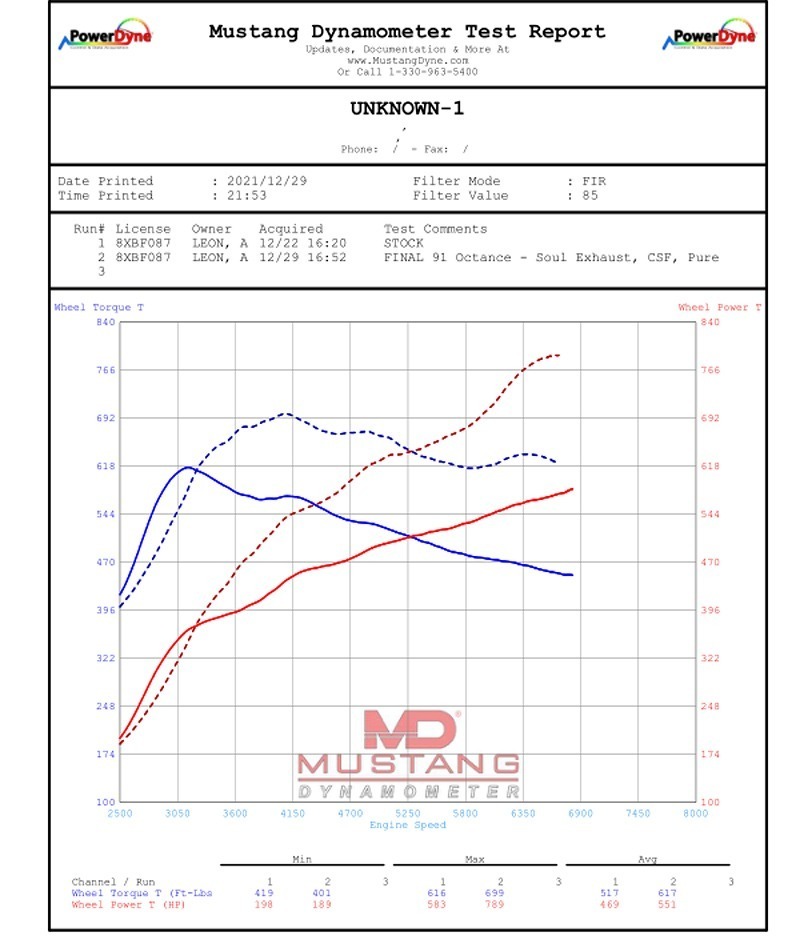

POWER: Expressing our intent to support big power builds, World Motorsports was up to the task of proving performance gains. Our Competition Performance Exhaust System was paired with upgraded headers, CSF intercoolers, upgraded Pure Turbos, and M-Engineering ECU tune. With 91 octane gas, the Mustang dyno recorded peak power gains of 206 whp and 83 ft-lbs of torque with massive gains across the board at all RPM.
CONSTRUCTION: Each system is assembled in house in the USA out of mandrel bent, thick wall .065″” T304L stainless steel. Back purged TIG welding (with ARCAL™ Prime argon gas) ensures proper weld penetration and longevity. Water jet cut flanges are made to ISO 9001:2015 standards with tolerances of +/- 0.003 inches for extreme precision. We fabricate these components using thick gauge aluminum fixtures which act as a great heat sink during the welding process and prevent warping not only of our products, but the fixtures themselves to ensure perfect fitment.
BOLT ON AND GO: Every component is rigorously quality-checked, tested in a fixture to guarantee fitment, and then foam packed to ensure they arrive in perfect condition. New high grade hardware is included for installation.
LIFETIME WARRANTY: Enjoy your SOUL exhaust components with confidence on both the street and track as they are covered for life! Our team will quickly work with you to resolve any issues or answer any questions that you may have.
NOTES
+ This product is not CARB certified and may not be legal for use on emissions controlled vehicles; intended for closed course competition use only
+ United States based customers purchasing this product are required to sign our Catless Exhaust Component Waiver here.
M-Engineering –
We have done extensive exhaust testing on a number of setups and configurations for the 992 Turbo on our dyno facility in Pompano Beach. We plan on doing a write up on all of our findings soon as well.
We actually installed an EMAP sensor on our shop car for testing, this is an auxiliary sensor that measures the exhaust manifold pressure and can tell us what kind of back pressures are present in the system and are putting restriction on the motor and turbocharger.
In summary of our findings, a proper true 3″ turboback system with good flow, x-pipe that blends the two banks, and no valves, will give the highest power levels, best boost response, and lowest EMAP. As soon as you install systems that are 2.75″, have valves, or have a poor blending of banks or divorced setup, power goes down along with a higher EMAP compared to the 3″ systems.
There is power to be made by upgrading the stock muffler in the rear, however, you are better off upgrading the link pipes instead first. If you are chasing absolute pure raw power and going for the highest possible power combination and are chasing power numbers, run the stock headers, and get a true 3″ turboback system with no valves. We have found so far that the Soul Performance systems makes the best power, and it just so happens to sound really incredible and has a great fit and finish.
-Charles@M
